furnace
OUR PRODUCTS
The products are mainly used for high temperature ceramic sintering, graphitization + purification of carbon fiber products, and high purification treatment of graphite materials for semiconductor, which can be customized according to customer requirements. The graphite purification index can be stabilized to below 1 PPMW
Junge Zhicheng Technology
Downward swing door sideshift induction heating purification furnace
Junge Zhicheng Technology
Downward swing door fixed resistance heating and purification furnace
Junge Zhicheng Technology
Large horizontal resistance heating graphite + purified integrated furnace
Junge Zhicheng Technology
Single body powder high temperature purification furnace
Junge Zhicheng Technology
Continuous powder high-temperature purification furnace
remote service
Provide remote service function
Identity login
Perfect function
Remote monitoring
Service
Remote servicefull-chain support
The company provides remote service function.Have the research and development ability from product to process, with advanced purification technology, with customer site turnkey ability.

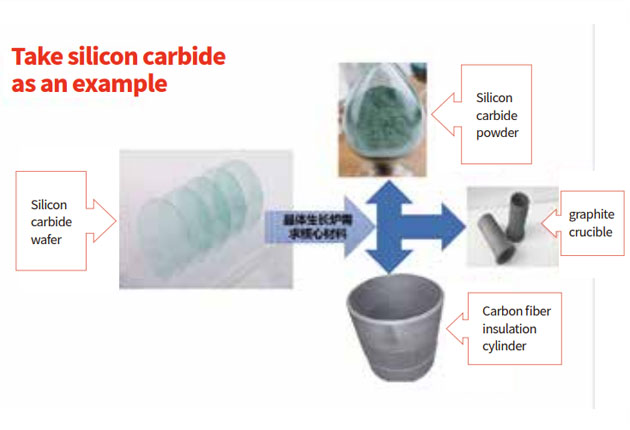

- Can be applied to the field of silicon carbide

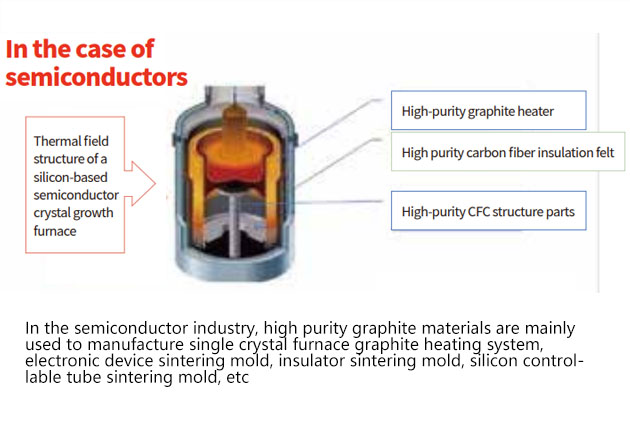

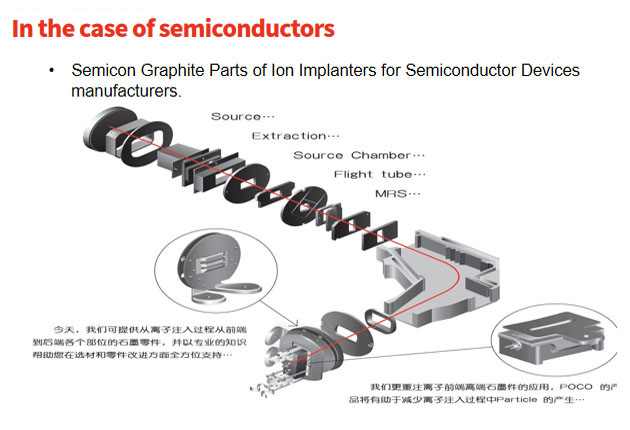

- Can be applied to the field of semiconductor
- Can be applied to the field of nuclear reactor
Product Spectrum
Type |
Effective working space（mm) |
Maximum temperature(℃) |
Heating power(KW) |
Purification furnace |
2000-2200-5600 |
2400 |
2100 |
φ1300-800 |
2400 |
330 |
|
φ1050mm×1100 |
2400 |
300 |
|
φ1050mm×1100 |
2400 |
400 |
|
φ1400mm×2000 |
2400 |
850 |
|
φ1750mm×1560 |
2400 |
600 |
|
φ1400mm×1100 |
2400 |
600 |
|
φ1500mm×1600 |
2400 |
600 |
|
Carbonization and graphitization furnace |
φ1250-1400 |
2200 |
300 |
1600-1700-4500 |
2100 |
1050 |
|
1600-1700-5200 |
2100 |
1050 |
|
2000-2200-5600 |
2400 |
1800 |
|
1800-1800-3300 |
2100 |
700 |
|
Graphite powder purification furnace |
φ1300mm×1450 |
2400 |
300（Single-unit furnace） |
φ300mm×2000 |
1300 |
120（Continuous purification furnace） |
|
φ600mm×5000 |
3000 |
1000 （Continuous graphitization and purification furnace of the negative electrode powder） |
